ABOUT

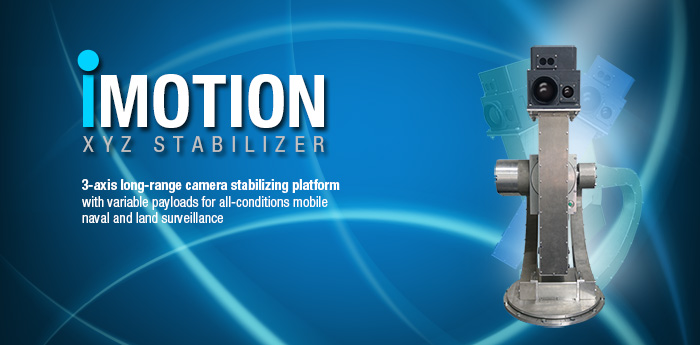

IMOTION XYZ platform is our brand new innovative technical solution to the need for superior pan-tilt and roll long-range cameras’ stabilization. The 360° stabilization range at the angle stabilization speed of 60° per second together with the adjustable, up to 50 kilograms payloads cameras’ weight compensation makes the IMOTION XYZ system a highly reliable, flexible and precise stabilizing platform throughout all-conditions, mobile naval and land surveillance.
It’s extremely flexible in terms of accommodating cameras and robust design – insulating from jitter, shocks, water and dust - ensures platform’s long-term intensive usage under rough conditions without requiring adjustments, nor maintenance fixing.
IMOTIONS XYZ STABILIZER is designed to be used with customized cameras and computer interfaces.
IMC Positive Business Solutions, as patent owner, guarantees user-friendly usage, rapid customer response and servicing, state-of-the-art stabilizing experience.
According to clients’ specific needs and demands, the platform will be adjusted by our team of specialists offering cutting edge stabilization performance standards, versatility and reliability.
TECHNICAL FEATURES OF IMOTION XYZ STABILIZER

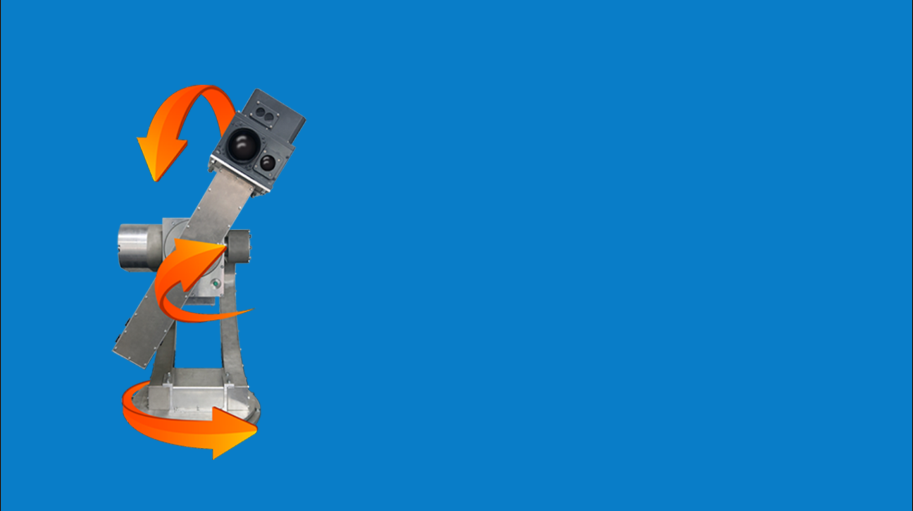

Area of elevation & roll stabilization
Stabilization range
Angular stabilization speed max.
Angular acceleration
Resolution
Proximity gyration sensors
Proximity sensors
Mechanical stop elevation & roll
Precision
Shock resistance
Working temperature
Platform mass without lens & sensors
Adaptable payloads
Overall dimensions (L x W x H)
Power supply
Lifetime
±30°
nx360°
60°/sec
4,2 s-2
1.3” (angular sec.)
0°
±30°
±32°
±6’ (angular min.)
3 g
-20° +60°C
70 kg
up to 50 kg
633 x 410 x 1323 mm
24-28 V / 220 V
minimum 30,000 hours
UTILIZATIONS
For land vehicle mounted and naval in motion security applications
Fixed and mobile border surveillance
Day and night environmental surveillance activities
Search and rescue missions
Moving target detection and tracking
Coastal control and tracking
Perimeter safeguard and defense
